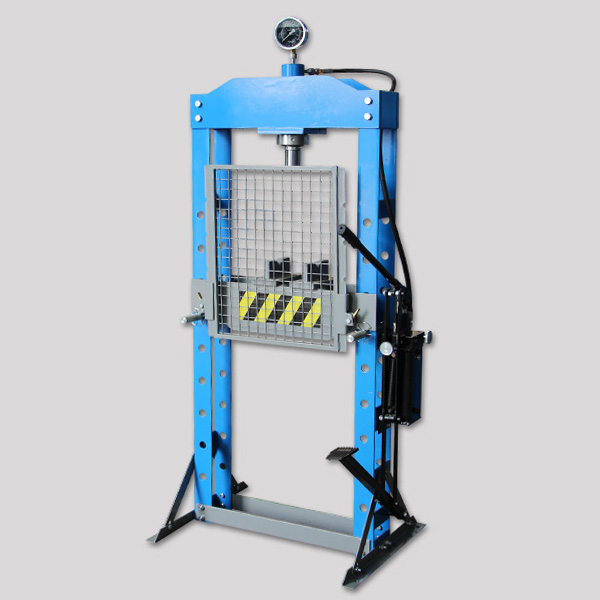

HP-S series manual control hydraulic presses have the advantages of small volume, simple structure and low cost. The machine is suitable for operating in the open air or the other special situation.
Model | Capacity | Pressure | Travel | Table Size | Dimension | Weight |
Unit | kn | Mpa | mm | mm | mm | kg |
HP-10S | 100 | 20 | 180+450 | 200x300 | 500x350x1300 | 220 |
HP-20S | 200 | 50 | 200+450 | 200x300 | 500x350x1300 | 260 |
HP-30S | 300 | 50 | 200+450 | 300x400 | 550x400x1500 | 320 |
HP-40S | 400 | 60 | 250+450 | 360x500 | 1000x550x1500 | 380 |
HP-50S | 500 | 60 | 250+450 | 360x680 | 1000x600x1750 | 460 |
HP-80S | 800 | 40 | 300 | 500x400 | 1560x650x1950 | 820 |
HP-100S | 1000 | 40 | 300 | 800x400 | 1600x650x2100 | 980 |
HP-150S | 1500 | 40 | 300 | 800x400 | 1730x730x2150 | 1100 |
HP-200S | 2000 | 40 | 300 | 1000x500 | 1800x800x2250 | 1600 |
