DETAILS

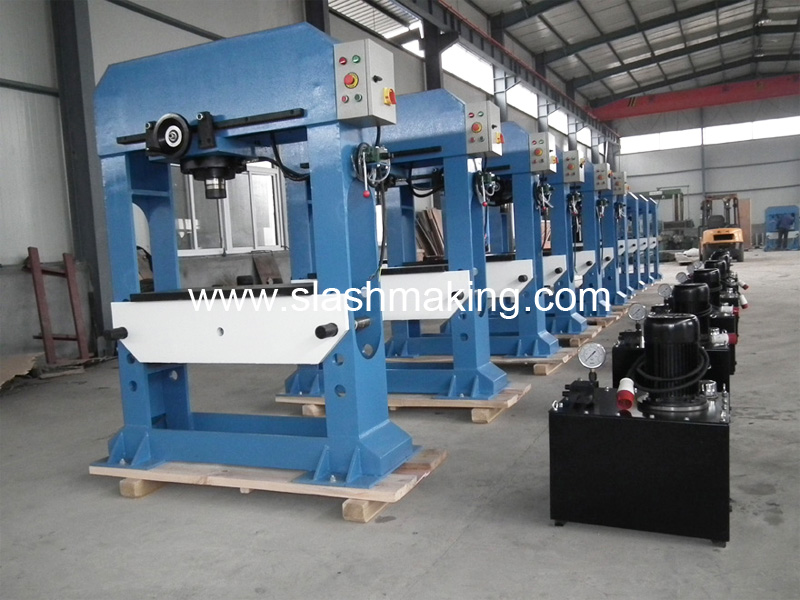

HP-M Series Movable Cylinder Hydraulic Press with features: the hydraulic press cylinder can move freely from left to right, to enlarge the woriking space, which makes it more convient and quicker operation.
| Model | Capacity | Pressure | Travel | Table Size | Dimension | Weight |
| Unit | kn | Mpa | mm | mm | mm | kg |
| HP-50M | 500 | 25 | 220+405 | 400x500 | 1500x650x1950 | 980 |
| HP-63M | 630 | 25 | 220+405 | 400x500 | 1500x650x1950 | 1020 |
| HP-100M | 1000 | 30 | 250+405 | 440x980 | 1730x730x2250 & 730x630x960 | 1220 |
| HP-150M | 1500 | 30 | 250+405 | 440x980 | 1730x730x2250 & 730x630x960 | 1350 |
| HP-200M | 2000 | 31.5 | 300+405 | 500x1000 | 1940x800x2250 & 900x800x1060 | 2200 |
| HP-300M | 3000 | 31.5 | 300+405 | 700x1200 | 2100x950x2700 & 1100x1200x1350 | 4200 |
| HP-400M | 4000 | 31.5 | 300+405 | 800x1200 | 2300x1000x2900 & 1100x1200x1350 | 5500 |
