DETAILS

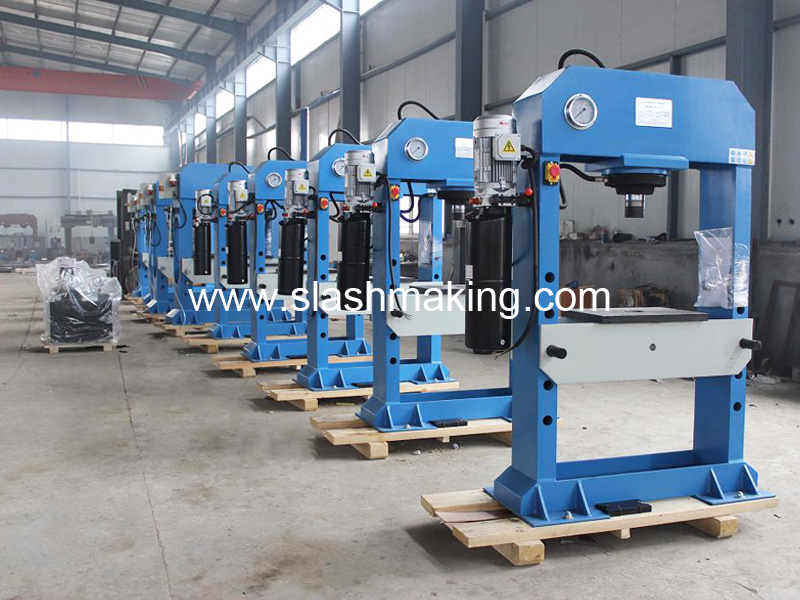

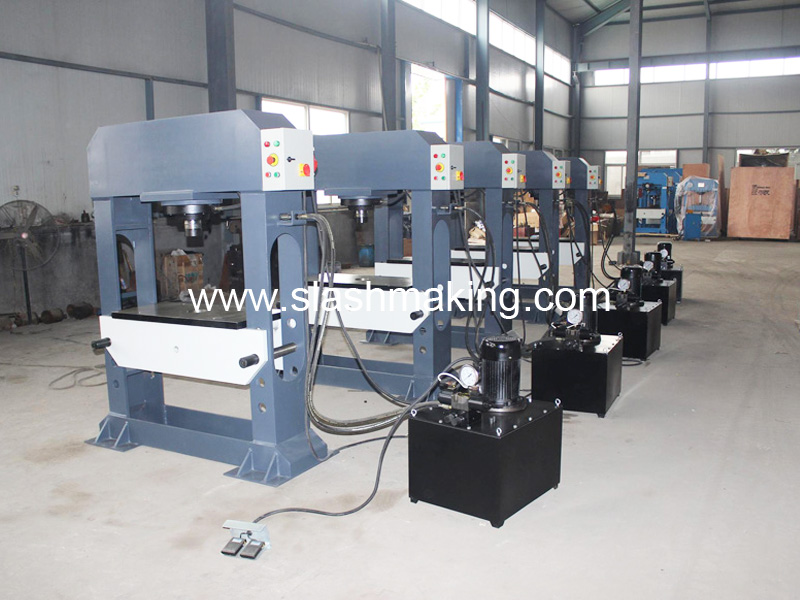

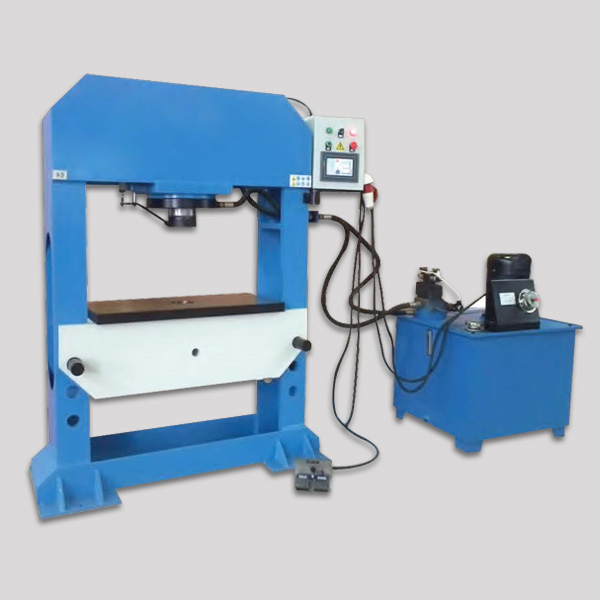

HP series hydraulic press are used for assembling, calendaring, tension, bending and punching. The machine is supplied with oil by CNK and CBZ pump from Italy. It could save 60% energy compared with the traditional model. The efficiency increases to 2-3 times. It takes the advantages of small volume, high pressure, simple structure and light weight.
| Model | Capacity | Pressure | Travel | Table Size | Dimension | Weight |
| Unit | kn | Mpa | mm | mm | mm | kg |
| HP-30 | 300 | 25 | 200+270 | 300x400 | 1160x550x1600 | 420 |
| HP-50 | 500 | 25 | 220+405 | 480x360 | 1500x650x1950 | 980 |
| HP-63 | 630 | 30 | 220+405 | 400x500 | 1500x650x1950 | 1020 |
| HP-100 | 1000 | 30 | 250+405 | 440x980 | 1730x730x2250 & 730x630x960 | 1220 |
| HP-150 | 1500 | 30 | 250+405 | 440x980 | 1730x730x2250 & 730x630x960 | 1350 |
| HP-200 | 2000 | 31.5 | 300+405 | 500x980 | 1940x950x2350 & 900x800x1060 | 2200 |
| HP-300 | 3000 | 31.5 | 300+405 | 700x1200 | 2100x950x2700 & 1100x1200x1350 | 4200 |
| HP-400 | 4000 | 31.5 | 300+405 | 800x1200 | 2300x1000x2900 & 1100x1200x1350 | 5500 |
| HP-500 | 5000 | 31.5 | 300+405 | 900x1200 | 2300x1000x2900 & 1100x1200x1350 | 6500 |
| HP-630 | 6300 | 31.5 | 400+405 | 1000x1200 | 2300x1200x2900 & 1100x1200x1350 | 9500 |
