DETAILS

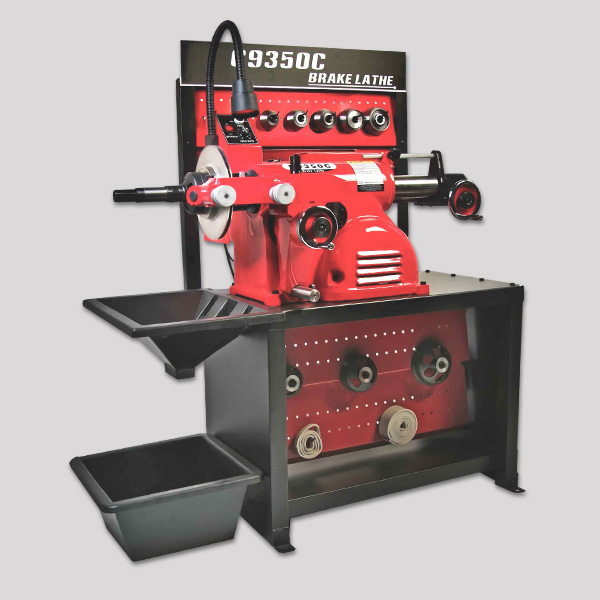

Brake Lathe C9350C is capable of faster, more accurate and easier resurfacing the brake drum/disc surface. Infinitely adjustable feed rates allow you to easily modify cut speeds with the sample turn of a dial. Now you can reduce or incarese the cut-time for best finish results, whether you're speeding through and initial rough cut or single-pass micro-finish.
| Specification | C9350C |
| Rotor Diameter | 7"-15"(180-381mm) |
| Drum Diameter | 6"-28"(152-711mm) |
| Rotor Thickness | 1.875"(48mm) |
| Drum Depth | 6.875"(175mm) |
| Spindle Travel | 6.875"(175mm) |
| Spindle Speed | 70,88,118RPM |
| Spindle Feed Speed | 0.002"/0.05mm-0.02"/0.5mmRev |
| Cross Feed Speed | 0.002"/0.05mm-0.02"/0.5mmRev |
| Handwheel Graduations | 0.002"/0.05mm |
| Motor | 110V/220V/380V, 50/60Hz |
| Gross Weight | 290KG |
| Dimension | 970x920x1140mm |

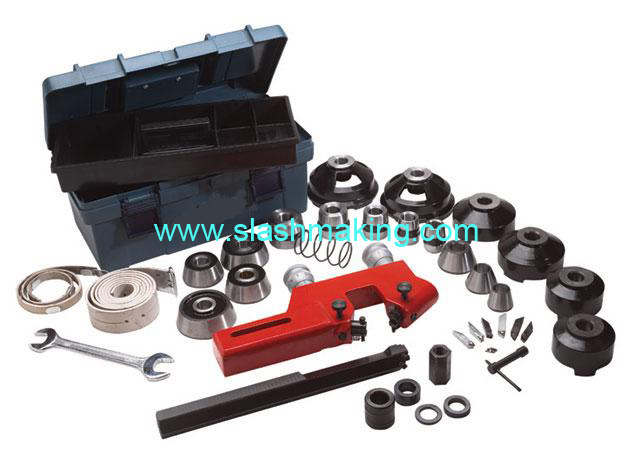

C9350C adapters:
