DETAILS

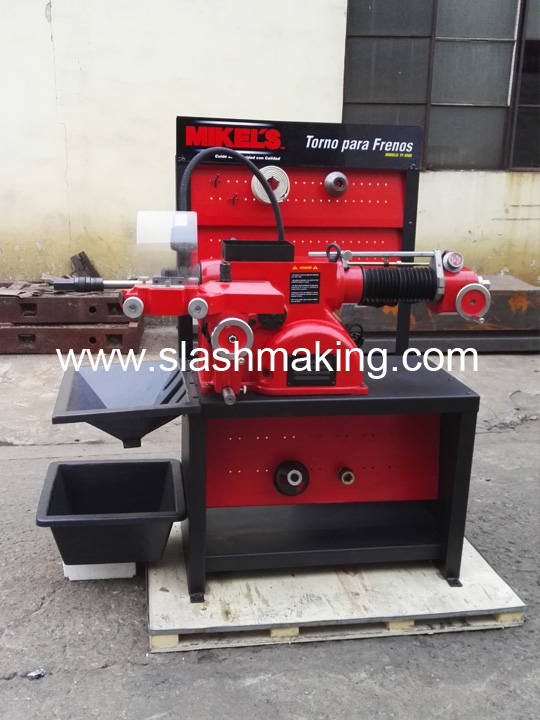

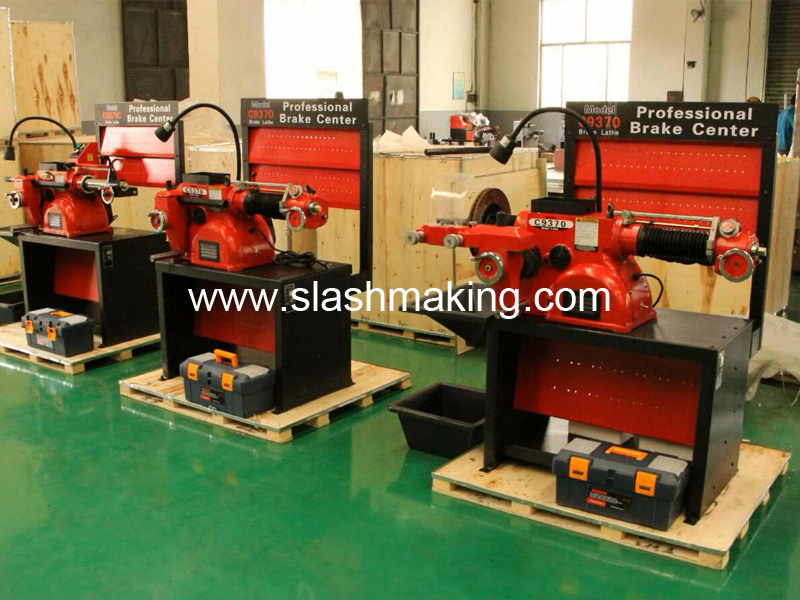

C9370 brake lathe is capable of faster, more accurate and easier resurfacing the lathe, Infinitely adjustable feed rates allow you to easily modify cut durm, Fast and slow setting allow cutting the rotors. There are three kinds of spindle speeds to choose 70,88,118RPM. With cross feed extension plate will be increase the maximum rotor diameter to 18"/457mm.
| Specification | C9370 |
| Rotor Diameter | 7"-18"(180-457mm) |
| Drum Diameter | 6"-28"(152-711mm) |
| Rotor Thickness | 4"(102mm) |
| Drum Depth | 9.875"(251mm) |
| Spindle Speed | 70,88,118RPM |
| Spindle Travel | 9.875"(251mm) |
| Spindle Feed Speed | \ |
| Cross Feed Speed | \ |
| Handwheel Graduations | \ |
| Motor | 110V/220V/380V, 50/60Hz |
| Gross Weight | 350KG |
| Dimension | 1100x1070x1140mm |
