DETAILS
Quickly, accurately and efficiently to cutting rotor; fast and slow setting allow cutting rotor.
Quickly, accurately and efficiently to cutting drum; Finitely adjustably setting allow cutting drum.
Three kinds of speed to choice for spindle speed.
A convenient design allows to quickly change from rotor to drum,with cross feed extention plate will be increase the maximum rotor diameter to 22"/ 588mm.
Position of stop make the lathe stop automatic after the cutting.
Fully equipped adapter package.

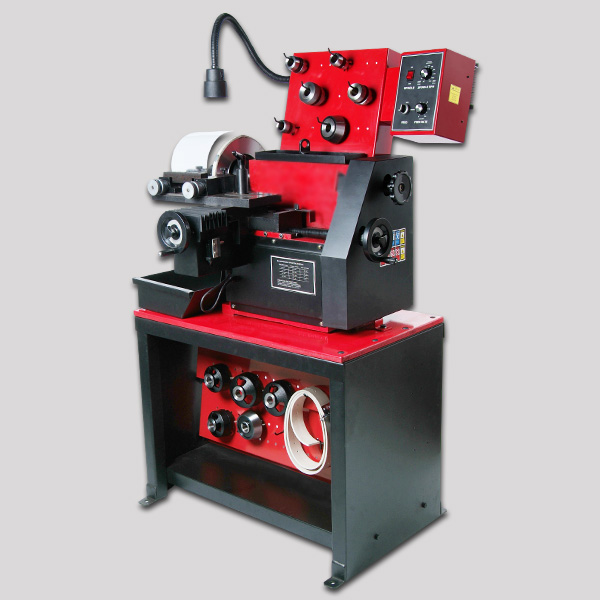

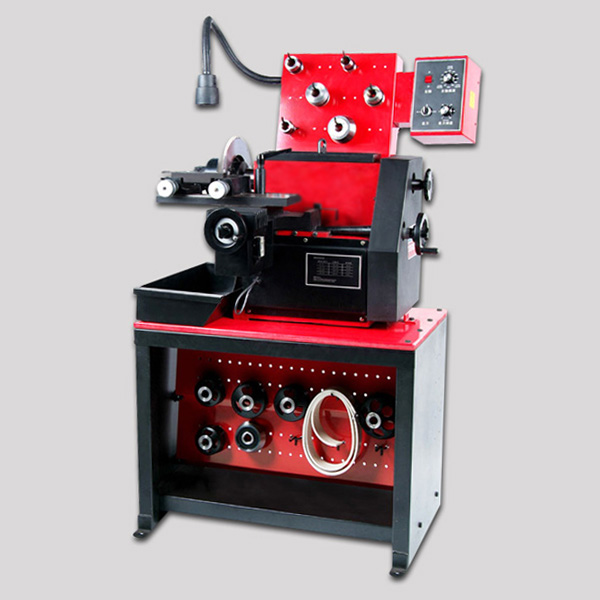

Brake Lathe C9372 is light, efficient and nice looking, used for car brake drum disc surface repairing.
| Specification | C9372 |
| Rotor Diameter | 4"-24"(102-610mm) |
| Drum Diameter | 6"-8"(152-711mm) |
| Rotor Thickness | 2.85"(73mm) |
| Drum Depth | 9"(229mm) |
| Spindle Speed | 70-320RPM |
| Spindle Travel | \ |
| Spindle Feed Speed | 0"-0.026"(0-0.66mm) |
| Cross Feed Speed | \ |
| Handwheel Graduations | \ |
| Motor | 110V/220V/380V, 50/61Hz |
| Gross Weight | 300 KG |
| Dimension | 1130x720x750mm |
| Quantity in 20ft container | 48 PCS |
