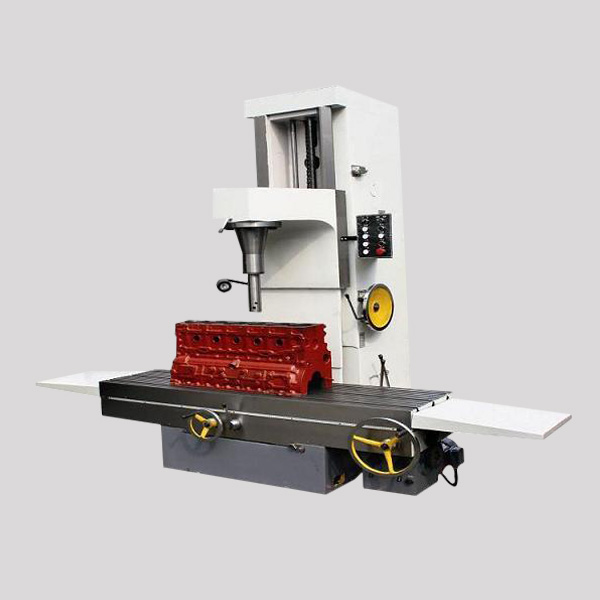

Cylinder Boring Machine T8018C is mainly used for boring the cylinder hole of internal combustion engine and the inner hole of cylinder sleeve of cars or tractors, and also for other machine element holes. T8018C is used for repairing medium, large-scale and heavy-duty engines.
| Specifications | Unit | T8018A | T8018B | T8018C |
| Processing Diameter | mm | 30-180 | 30-180 | 42-180 |
| Max Honing Depth | mm | 450 | 450 | 650 |
| Spindle Speed | r/min | Infinitely variable | 175/230/300 /350/460/000 | 175/230/300 /350/460/000 |
| Spindle Feed | Mm/r | 0.05,0.10,0.20 | 0.05,0.10,0.20 | 0.05,0.10,0.20 |
| Motor Power | kw | 3.75 | 3.75 | 3.75 |
| Overall Dimensions (LxWxH) | mm | 2000 x 1230 x1920 | 2000 x 1230 x1920 | 2680 x 1500 x2325 |
| Packing Dimensions (LxWxH) | mm | 1400 x 1400 x 2250 | 1400 x 1400 x 2250 | 1578 x 1910 x 2575 |
| N.W/G.W | kg | 2000 / 2200 | 2000 / 2200 | 3500 / 3700 |

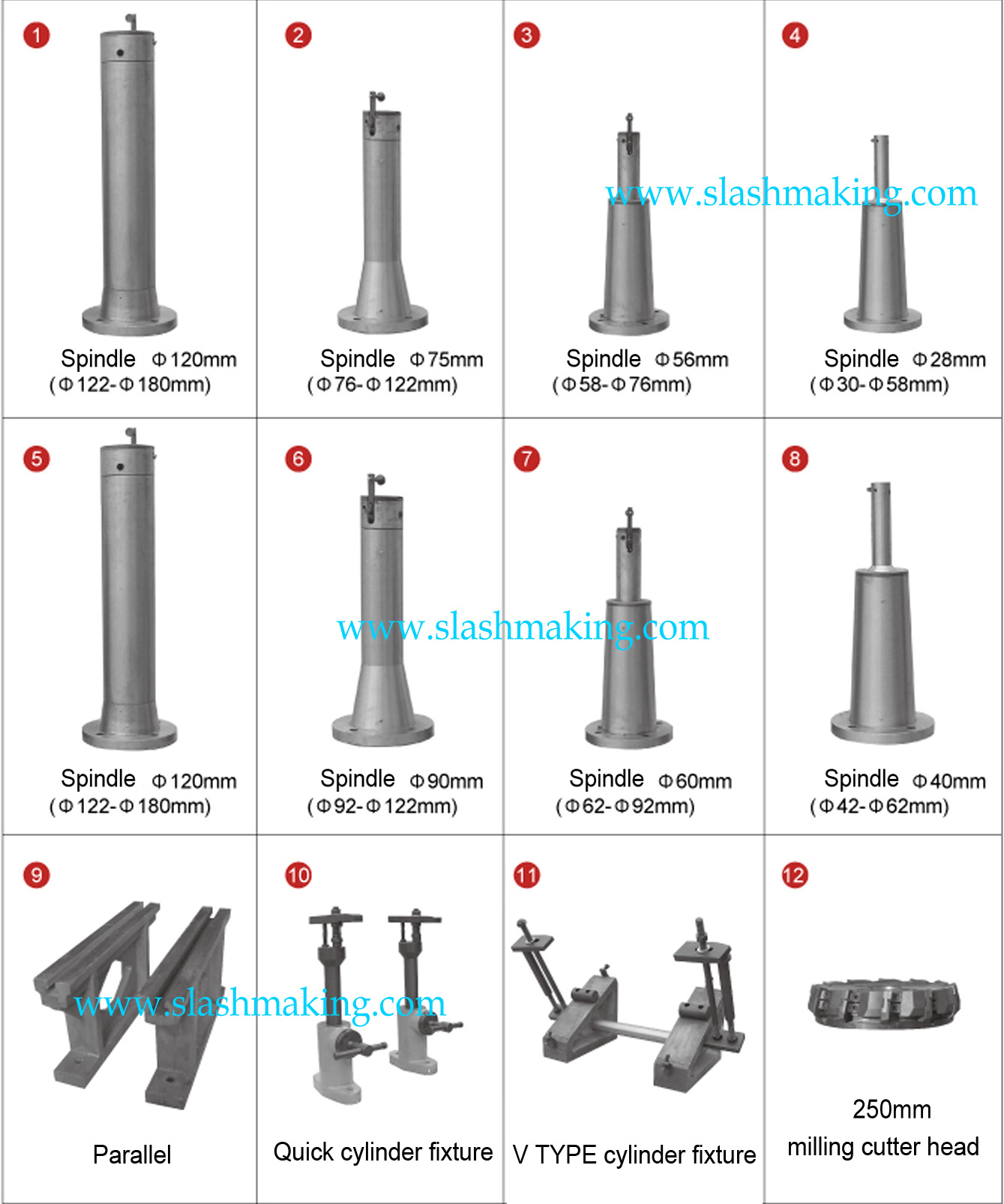

Accessories:
