DETAILS

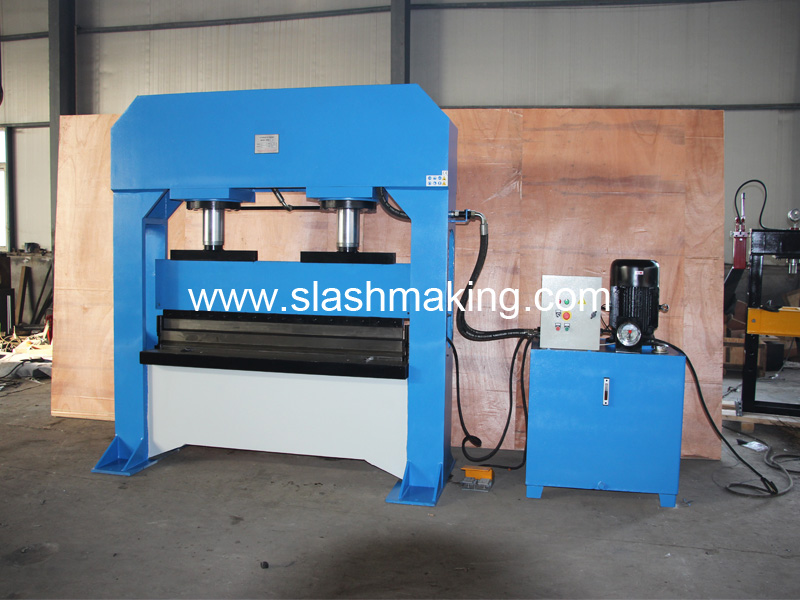

HPB series Hydraulic Bending Machine is used for assembling, dismantling, alignment, calendaring, tension, bending and punching. The machine supplied oil by Italy CNK and CBZ pump. It could save 60% energy compared with traditional models. The efficiency increases 2-3 times. It takes the advantages of small volume, high pressure, simple structure and light weight. The work talbe can move up and down, more convenient.
We have models from HPB-20 to HPB-200, from small process capacity to large capacity.
| Model | Capacity | Pressure | Travel | Table Size | Dimension | Weight |
| Unit | kn | Mpa | mm | mm | mm | kg |
| HPB-20 | 200 | 25 | 200+270 | 200x360 | 1060x500x1400 | 550 |
| HPB-30 | 300 | 25 | 300+270 | 300x400 | 1160x550x1600 | 650 |
| HPB-50 | 500 | 25 | 220+405 | 400x800 | 1500x650x1950 | 1100 |
| HPB-63 | 630 | 30 | 220+405 | 400x800 | 1500x650x1950 | 1200 |
| HPB-100 | 1000 | 30 | 250+405 | 460x980 | 1730x730x2250 & 730x630x960 | 1420 |
| HPB-150 | 1500 | 30 | 250+405 | 460x980 | 1730x730x2250 & 730x630x960 | 1750 |
| HPB-200 | 2000 | 30 | 300+405 | 500x1000 | 1940x950x2350 & 900x800x1060 | 2400 |
| HPB-300 | 3000 | 30 | 300+405 | 700x1200 | 2100x950x2700 & 1100x1200x1350 | 4200 |
