DETAILS

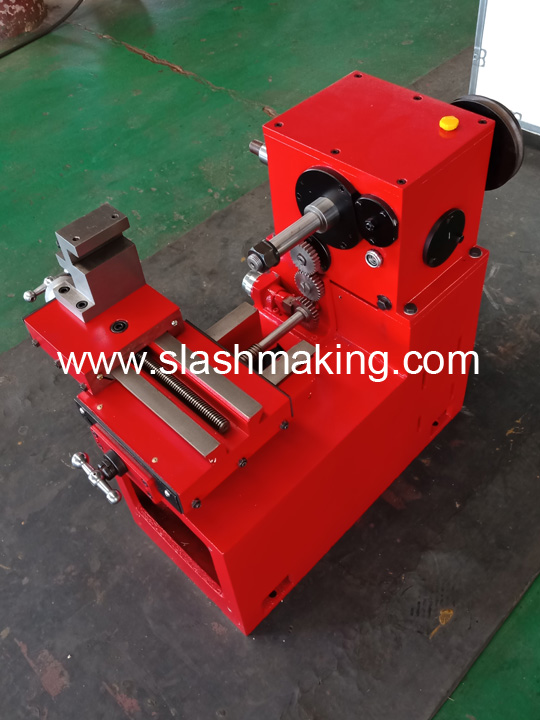

Brake Lathe C9335 model is applied to process brake disc and brake drum of normal small automobiles and family cars.
| Specification | Unit | C9335 |
| Brake Drum Diameter | mm | 180-350 |
| Brake Disc Diameter | mm | 180-350 |
| Rotating speed of work piece | r/min | 75/130 |
| Max. Travel of Tool | mm | 100 |
| Main Motor | kw | 1.1 |
| Overall Dimension(LxWxH) | mm | 695x565x635 |
| N.W/G.W | kg | 200/260 |
