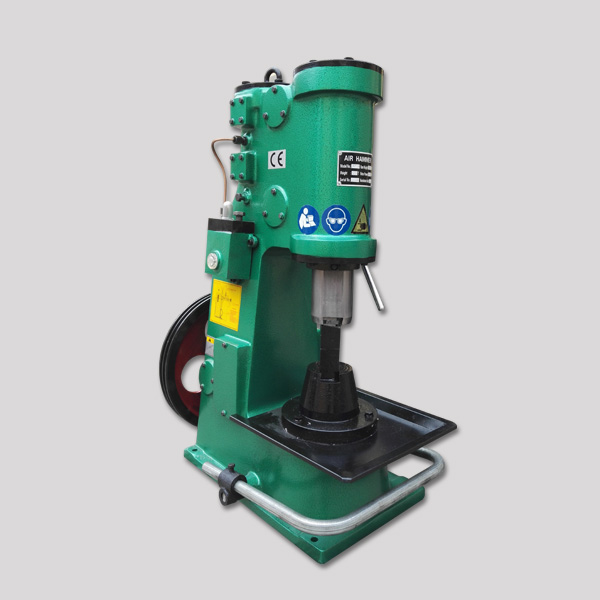

This Pneumatic Power Forging Hammer is widely used for general Forging works， such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting. It is also used for forge in bolster dies.
Parameter:

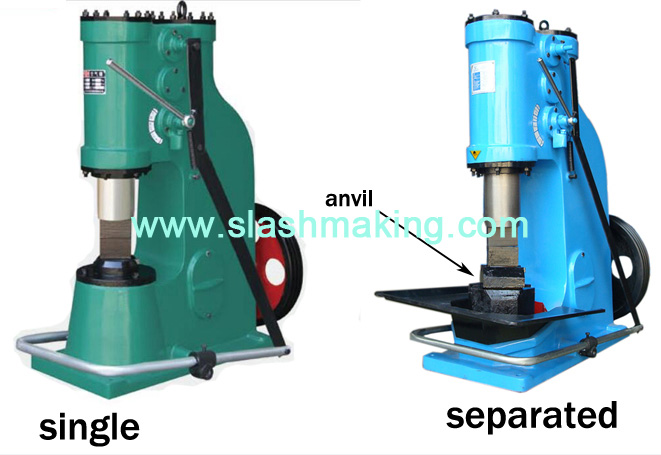

| SPECIFICATION | UNIT | C41-16 Single | C41-20 Single | C41-20 Separated | C41-25 Single | C41-25 Separated |
| Weight of falling parts | kg | 16 | 20 | 20 | 25 | 25 |
| Max. hit energy | kj | 0.18 | 0.22 | 0.22 | 0.27 | 0.27 |
| Height of working area | mm | 180 | 200 | 200 | 240 | 240 |
| Hit number | min-1 | 258 | 255 | 255 | 250 | 250 |
| Dimension of top and bottom die surface(LxW) | mm | 70x40 | 90x50 | 90x50 | 100x50 | 100x50 |
| Max. square steel can be forged | mm | 20x20 | 30x30 | 30x30 | 40x40 | 40x40 |
| Max. round steel can be forged(Diameter) | mm | 22 | 35 | 35 | 45 | 45 |
| Motor power | kw | 1.5 | 2.2 | 2.2 | 2.2 | 3 |
| Speeds of motor | rpm | 1440 | 1440 | 1440 | 1440 | 1440 |
| Anvil weight | kg | 190 | 250 | |||
| Total weight | kg | 290 | 440 | 560 | 760 | 860 |
| Overall dimensions(L*W*H) | mm | 800x420x1170 | 820x460x1110 | 820x460x1110 | 980x510x1200 | 980x510x1200 |
| SPECIFICATION | UNIT | C41-40 Single | C41-40 Separated | C41-55 Separated | C41-75 Separated | C41-150 Separated |
| Weight of falling parts | kg | 40 | 40 | 55 | 75 | 150 |
| Max. hit energy | kj | 0.53 | 0.53 | 0.7 | 1 | 2.2 |
| Height of working area | mm | 245 | 245 | 265 | 300 | 370 |
| Hit number | min-1 | 245 | 245 | 230 | 210 | 180 |
| Dimension of top and bottom die surface(LxW) | mm | 120x50 | 120x50 | 120x55 | 145*65 | 200x85 |
| Max. square steel can be forged | mm | 52x52 | 52x52 | 52x52 | 65*65 | 130x130 |
| Max. round steel can be forged(Diameter) | mm | 68 | 68 | 68 | 85 | 145 |
| Motor power | kw | 4 | 4 | 5.5 | 7.5 | 15 |
| Speeds of motor | rpm | 1440 | 1440 | 1440 | 1440 | 1470 |
| Anvil weight | kg | 400 | 600 | 850 | 1800 | |
| Total weight | kg | 880 | 1350 | 1700 | 2800 | 5060 |
| Overall dimensions(L*W*H) | mm | 1080x600x1430 | 1080x600x1430 | 1320x670x1620 | 1400x760x1950 | 2080x1240x2350 |
The machine is composed of two compress jar with one pole, double forging hammer. It is driven by motor only, operate the two valves using the foot staff and handle bar implement such function, such as: hang hammer head in the air, one time shock, continuous shock.
With simple structure, it can be operated, shipped, installed and maintained easily.
Hammer is composed of seven parts, there are hammer body, chopping block, driver, operation, lubricate, electrical equipment, base.

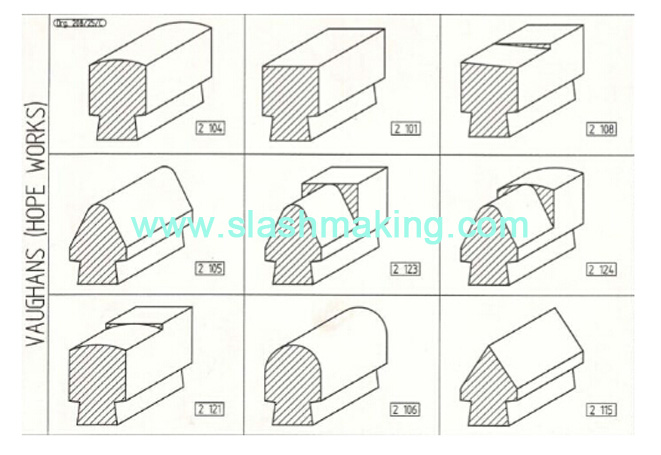

Normal dies:
