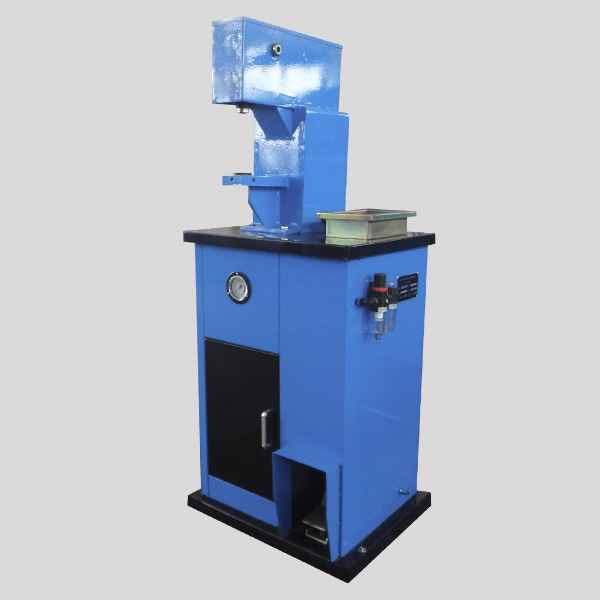

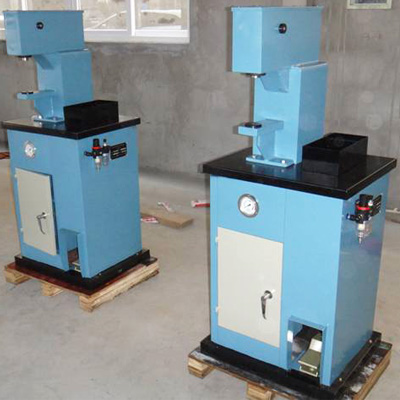

Pneumatic Brake Shoe Riveting Machine QM-24B uses compressed air as power source(air pressure is adjustable), is used for riveintg and punching rivets of all kinds of brake shoes/brake disc/brake drum/brake lining/brake pad and other auto parts(such as chutch plate).

Technical Parameter

Max Riveting Force: 60KN (6T)

Working Air Pressure: 0-0.8MPa (Adjustable)

Used for Rivet Diameter: 3mm-10mm (Copper and Aluminum rivets)

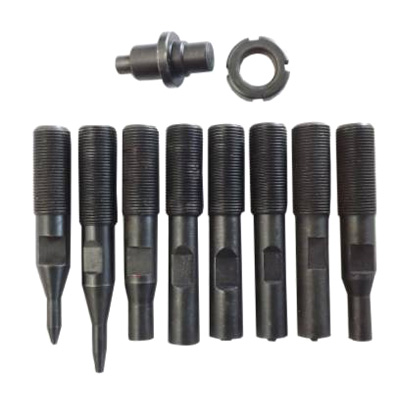

Tools & Accessories

Riveter: 6 Pcs, can be used to rivet or press Φ3,Φ4,Φ5,Φ6,Φ8,Φ10 rivets

Puncher: 2 Pcs, can be used to punch Φ3,Φ4,Φ5,Φ6,Φ8,Φ10 rivets

Dimensions

650x550x1360mm

N.W/G.W: 69/101KG

20FT container can load 90pcs, 40GP container can load 180pcs.
