DETAILS

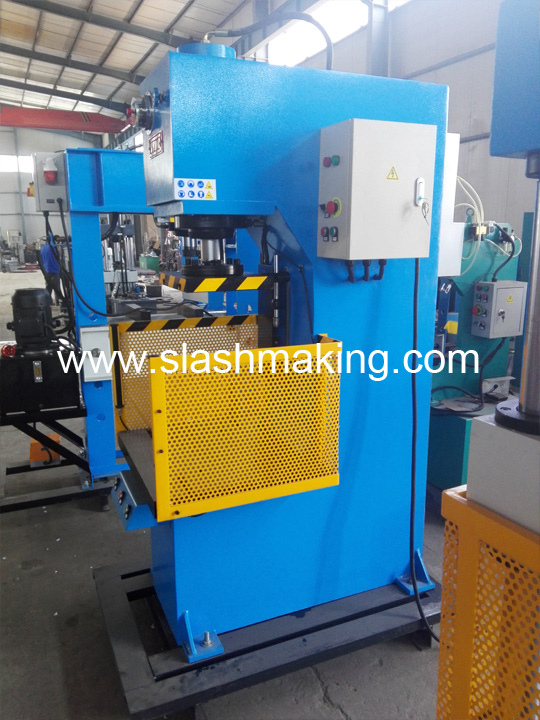

Open side "C" type series, C-Type Hydraulic Press with trihedral open work table, suitable for assembling and dismantling complex structure and large volume parts. It can be equiped with CNC control.
| Model | Capacity | Pressure | Travel | Table Size | Dimension | Weight |
| Unit | kn | Mpa | mm | mm | mm | kg |
| HP-20C | 200 | 25 | 300 | 400x300 | 800x600x1500 | 860 |
| HP-30C | 300 | 25 | 300 | 400x300 | 800x600x1500 | 1160 |
| HP-50C | 500 | 31.5 | 300 | 400x600 | 800x1200x1950 | 2800 |
| HP-63C | 630 | 31.5 | 300 | 400x700 | 800x1200x1950 | 3200 |
| HP-100C | 1000 | 31.5 | 400 | 500x800 | 1000x1600x2100 | 4800 |
